How to specify wire harness assembly gloves for harness boards, connector seating and cable tie trimming, with realistic ESD, cut, coating, MOQ, AQL and export details.
Start With the Actual Harness Task

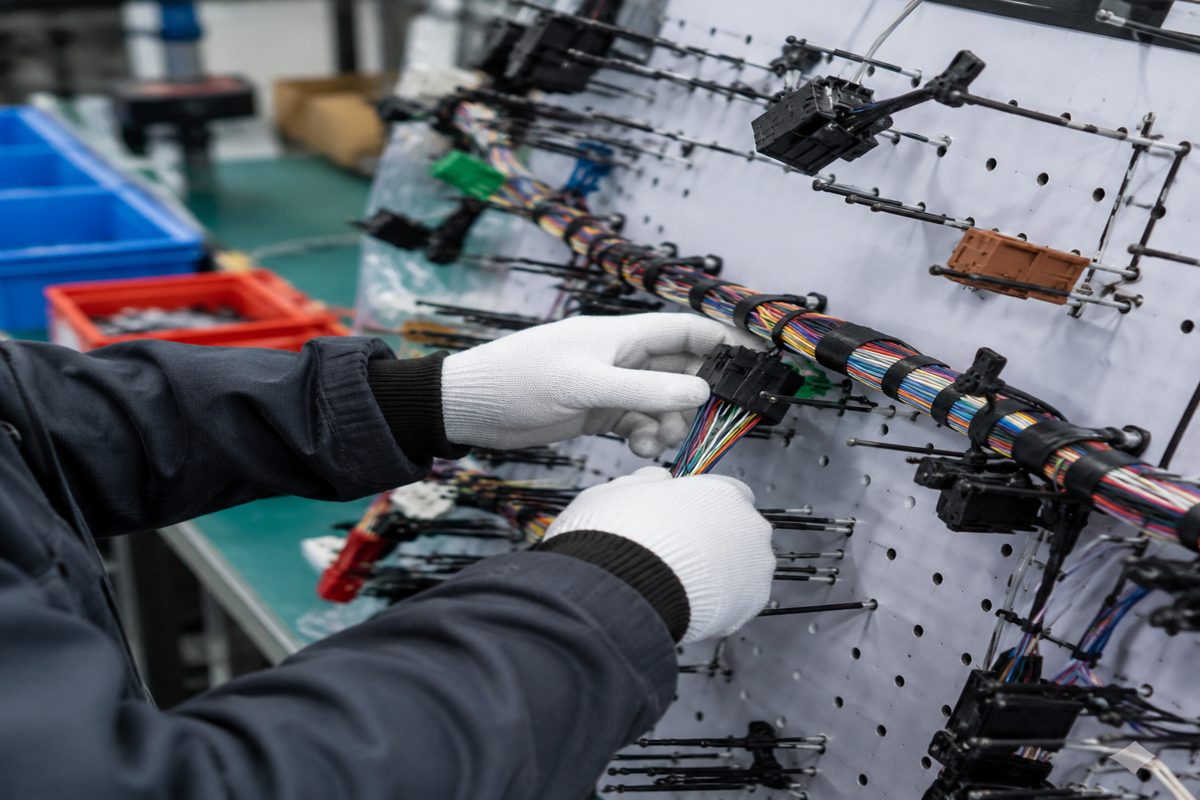

Most wire harness assembly gloves fail for simple shop-floor reasons: the fingertip is too bulky to feel a connector latch, the coating leaves grey or black transfer on PVC jackets, or the liner snags on trimmed cable tie tails. For harness boards, the base spec is usually not a mechanic glove. It is a 15 gauge or 18 gauge seamless liner in nylon, polyester, nylon-carbon, or HPPE blend, with a thin polyurethane palm or fingertip coating. The task list should drive the glove. Routing 0.35 mm² to 6 mm² wires around board pegs needs dexterity and low lint. Seating JST, TE, Molex-style or automotive connector housings needs fingertip sensitivity. Trimming nylon 66 cable ties and handling stamped clips adds cut risk. If operators only route, tape and scan labels, an 18 gauge nylon-carbon PU glove is normally enough. If they also cut ties or push metal brackets, we would move to a 15 gauge HPPE, polyester and spandex liner with EN 388:2016+A1:2018 cut B or C. We would not start with cut D unless the buyer accepts slower connector seating and thicker fingertips. Ask for a sample trial on the actual board, not just a glove catalogue sheet. A useful trial is 20 to 50 pairs across sizes S to XL or XS to XXL, worn for one shift on routing, insertion, tie trimming and final visual inspection. Operators should report missed clicks, snagging, sweat build-up and visible marks on cable jackets. That feedback is more valuable than choosing the highest cut level on paper.
ESD Is Useful, But Do Not Overbuy It
Many buyers write anti-static glove on the enquiry, but wire harness assembly is not always an ESD-controlled process. Appliance looms, seat harnesses and body harnesses often need clean handling and low lint more than measured surface resistance. Sensor harnesses, ECU sub-assemblies, PCB-connected cable sets and battery management harnesses may need ESD control under IEC 61340-5-1 or the buyer's internal ESD programme. A typical ESD assembly glove uses 13 gauge or 15 gauge nylon-carbon yarn with black conductive carbon filaments knitted through the liner, plus PU coating on the palm or fingertips. Buyers often specify surface resistance in the 10⁶ to 10⁹ ohm range, but that number must be tied to a method such as ANSI/ESD STM11.11 or a recognised lab test. Humidity, washing, coating thickness and even where the probe touches the glove can change the reading. GloveMark can make carbon yarn ESD glove styles, but we are direct about the limit: a glove alone does not create an ESD-safe workstation. Wrist straps, floors, benches, packaging, humidity and operator behaviour still matter. If a buyer needs batch resistance data for each shipment, the purchase order should state the test method, sample quantity, acceptance range and whether testing is done before or after washing. Do not rely on the word ESD printed on a polybag.
Coating Choice: PU, Nitrile Foam or Dots
PU is the normal first choice for wire harness assembly gloves because it is thin, low tack and gives a clean feel on small tabs, seals and connector locks. On a 15 gauge liner, a palm PU coating typically adds around 0.15 to 0.25 mm at the palm surface, depending on dip depth and viscosity. Fingertip-only PU can improve breathability and reduce coating contact with cable jackets, but it gives less grip when bundling larger looms. Black PU hides dirt but may be questioned if the buyer sees transfer on white card or light PVC insulation. Grey PU is a common compromise. White PU looks clean in photos, but on a real line it can look dirty after one shift, especially where operators handle adhesive tape, printed labels and cardboard trays. During sample approval, we can run a simple dry rub check: 10 strokes on white card and visual inspection under normal factory light. For stricter programmes, the buyer should define the rub test and pass limit. Nitrile foam gives better grip on slightly oily or plasticised cable jackets, but it is thicker than PU and can drag when feeding wires through board pegs. Sandy nitrile is normally too aggressive for fine harness assembly unless the job includes metal bracket handling. PVC dots can help for packing finished looms into cartons, but raised dots can leave pressure marks on soft insulation if operators grip all day. Natural rubber latex is not our first recommendation because some electronics and automotive buyers prohibit latex in their work areas. Conductive fingertips for scanners are possible, but custom versions usually need 3,000 to 5,000 pairs per colour and size mix.
Cut Level Without Killing Finger Feel
The most common over-spec is EN 388 cut D or ANSI/ISEA 105 A4 for every harness workstation. It sounds safe, but it often creates a slower line. Harness cuts usually come from cable tie tails, stamped terminals, bracket edges or sharp clip corners, not from continuous blade contact. A 15 gauge HPPE, polyester and spandex glove with PU coating can often reach EN 388 cut B, sometimes C, while still letting operators pick small seals, M3 clips and tape tabs. For European marking, EN 388:2016+A1:2018 must show abrasion, coupe cut, tear, puncture and TDM cut where applicable. A marking such as 4X31B means abrasion 4, coupe not used or not applicable, tear 3, puncture 1 and TDM cut B. For North American programmes, ANSI/ISEA 105 cut levels such as A2 or A3 use a different scale. Do not mix ANSI and EN numbers on artwork as if they are equivalent. If the glove will carry CE or UKCA marking, the route must be agreed before production: test report, technical file, user information, authorised economic operator details where required, and correct pictogram artwork. GloveMark does not print CE marks just because a buyer asks for them on a back-of-hand logo. A pictogram without the correct documentation can create trouble at import or during an automotive supplier audit.
Fit, Lint and Colour Control on the Line
Harness operators may wear gloves for 8 to 10 hours, so fit is not cosmetic. Loose fingertips cause missed connector clicks and poor label handling. For lines with many women operators, a standard men's industrial pattern can be too long in the fingers even when the palm width is acceptable. For OEM orders, we prefer a real size trial across XS, S, M, L, XL and sometimes XXL, then set the size ratio from operator data instead of guessing. One wrong ratio can leave cartons of unused XL while the line runs short of S and M. Lint matters on black interiors, light cable jackets and final visual inspection. Continuous filament nylon is cleaner than spun cotton. Polyester can be a good low-lint choice, but cheap spun polyester liners can still shed fibre at the cuff or overlock. Carbon yarn ESD liners should be checked for loose conductive filaments at the fingertips because these can snag small terminals. We normally review liner knitting, overlock stitching, cuff elasticity and coating edge during pre-production sample approval. Colour control should be practical. Cuffs and overlock threads can be matched to a Pantone reference for size coding, such as XS purple, S white, M green, L grey and XL brown if the buyer has a plant standard. Coating colour will have normal batch variation, especially grey PU. If the buyer needs Delta E control, the tolerance, light source and measurement method must be written before bulk dyeing. Otherwise the correct factory control is shade band approval, not arguing after shipment.
MOQ, Sampling and What GloveMark Can Actually Make
For standard PU coated nylon or nylon-carbon wire harness assembly gloves, a realistic MOQ is usually 1,200 to 3,000 pairs per colour, depending on yarn stock, coating colour and size spread. Counter samples normally take 7 to 10 days after yarn, gauge, coating and logo details are confirmed. Bulk lead time is commonly 4 to 6 weeks after deposit, approved sample and packaging artwork. Rush orders are possible only when yarn and former sizes are already available. As a working FOB China price band, a plain 15 gauge nylon PU coated glove is often around USD 0.35 to 0.90 per pair. Nylon-carbon ESD versions usually cost more because of conductive yarn and testing requirements. HPPE cut resistant PU gloves are often around USD 0.80 to 1.80 per pair, depending on HPPE content, glass fibre use, cut level, size range and packaging. These are planning ranges, not binding quotes; exchange rate, yarn market and lab testing can move the final price. GloveMark can make seamless knitted liners in 13, 15 and 18 gauge, PU or nitrile palm coatings, fingertip coatings, nylon-carbon ESD styles, HPPE cut resistant styles, printed logos, size-coded cuffs, individual polybags, inner boxes, export cartons and private label carton marks. We do not make Class 00 or Class 0 live-voltage insulating gloves. We do not claim cleanroom certification unless the gloves are processed, packed and tested through the correct cleanroom route. For outgoing inspection, a normal starting point is AQL 2.5 for major defects and AQL 4.0 for minor defects, using a sampling plan agreed with the buyer. Major defects include holes, open seams, wrong coating coverage, wrong size marking, severe contamination or incorrect packaging. Minor defects include light shade variation, small loose threads or acceptable coating edge variation. Export terms are usually FOB Ningbo or Shanghai for LCL or FCL shipments; EXW Yiwu is possible, but most importers prefer FOB so local trucking, customs declaration and port handling are controlled on the China side. A 40 ft HQ container can hold many tens of thousands of pairs depending on carton size, but we calculate carton CBM after the final packing method is approved, not from a catalogue guess.
