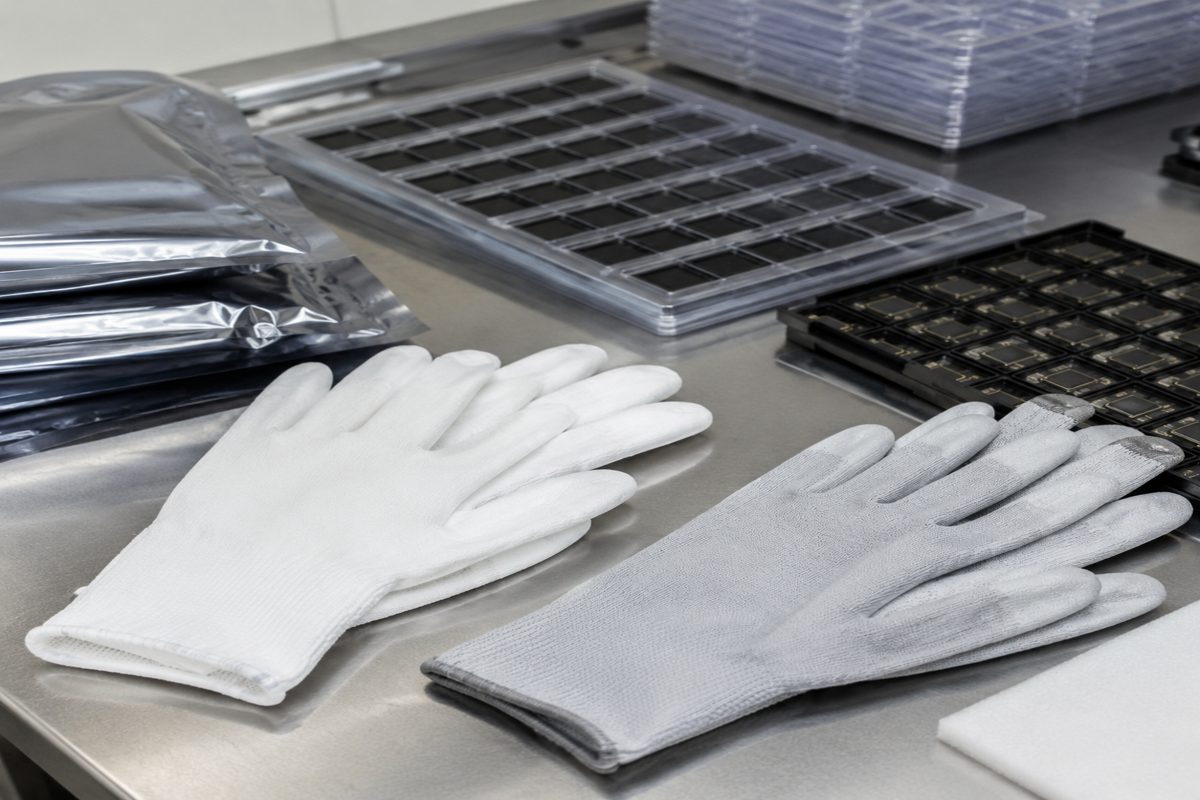

Factory-level guide to sourcing low-lint ESD gloves for semiconductor back-end handling, test, packaging and equipment maintenance, including materials, limits, MOQ, lead time, inspection points and export packing.
Where These Gloves Actually Fit in a Semiconductor Plant
Semiconductor handling gloves are not one product for the whole plant. Front-end wafer fab areas controlled to ISO 14644-1 Class 4 or Class 5 normally require validated cleanroom disposable nitrile, accelerator-free nitrile, or latex-free gloves washed, dried and double-bagged in controlled conditions. That is not our Yiwu knit-and-dip production line. We do not make sterile wafer fab gloves, and we will not put cleanroom class, particle count, NVR or ion-content claims on a carton unless the buyer provides or pays for the exact third-party test method and report. Where our factory fits is back-end and support work: IC packaging, tray loading, test handler operation, anti-static bagging, module assembly, tool maintenance, final inspection and warehouse handling of ESD-sensitive parts. The practical build is usually 13G, 15G or 18G continuous-filament nylon or polyester with conductive carbon yarn, plus thin polyurethane coating on the palm or fingertips. These gloves are selected to reduce cotton lint, keep fingerprints off QFN trays, JEDEC-style carriers, reels and sockets, and give enough grip without the heavy feel of a foam nitrile assembly glove. The limit is important. A carbon-stripe PU glove can support an ESD control programme, but it does not replace wrist straps, ESD flooring, grounded benches, ionisers, packaging controls or operator training under ANSI/ESD S20.20. If your plant needs gloves qualified for direct wafer contact, chemical splash, solvent cleaning, cryogenic work or sterile cleanroom use, specify those separately. A sourcing error here is expensive because the glove may pass visual inspection but fail the actual plant risk.
Liner Choice: Nylon, Polyester and Carbon Yarn
The most common low-lint liner for semiconductor handling gloves is 15G white nylon with carbon filament, because it balances cost, dexterity and output stability. 18G nylon gives a finer fingertip and lower bulk, useful for tray loading, fine module assembly and connector work, but knitting speed is slower and yarn breakage control is stricter. 13G is cheaper and stronger for maintenance or carton handling, but it feels thicker and is usually not our first choice for small component handling. Nylon is soft and comfortable over a full shift, but it absorbs more moisture than polyester. Polyester is crisper, more dimensionally stable after washing, and common for grey or black ESD styles. We avoid cotton for this application because staple fibre can shed into trays, sockets, tape-and-reel stations and handler nests. Blended cotton-polyester may be acceptable for general electronics packing, but it is a poor choice if the buyer is serious about low-lint semiconductor handling. Conductive yarn is normally carbon filament knitted as stripes through the back and fingers, often spaced at about 5 mm to 10 mm depending on the design and gauge. A proper RFQ should state the liner composition, gauge, carbon stripe layout, cuff type and coating area, not just ask for anti-static gloves. Typical specifications are 15G nylon plus carbon, white, PU palm coated, or 18G polyester plus carbon, grey, PU fingertip coated. We can make palm-only, fingertip-only and three-quarter coated versions. For most tray and test-area handling, palm PU is the practical default because it covers more contact surface and lasts longer than fingertip-only coating.
ESD Standards Buyers Should Put in the RFQ
Do not accept the phrase anti-static glove without a test method. For plant ESD control systems, buyers commonly reference ANSI/ESD S20.20 and IEC 61340-5-1. For glove resistance, IEC 61340-2-3 is often used for resistance and resistivity testing of solid materials, while plant labs may define their own point-to-point or surface resistance set-up. Many semiconductor back-end buyers ask for a resistance window such as 10^6 to 10^9 ohms, but the plant ESD coordinator should confirm the range, humidity conditioning and electrode method. A glove factory should not guess this for your line. EN 16350 is sometimes written into PPE purchasing documents because it covers protective gloves with electrostatic properties, with vertical resistance below 1.0 x 10^8 ohms under defined test conditions. It is useful when ATEX or explosive-atmosphere language appears in a corporate safety policy, but it is not the same as a semiconductor ESD process approval. EN 388 may also appear if the glove is used for mechanical work, but an EN 388 abrasion rating does not prove low lint or device protection. For a serious RFQ, ask for the last available resistance report on the same yarn structure, coating type and gauge, then run incoming verification inside your plant. Humidity matters: resistance can shift at 12 percent RH compared with 50 percent RH. Washing, abrasion and coating thickness also affect results. We can provide production samples and arrange third-party testing through labs the buyer accepts, but the buyer must define the standard, acceptance limit and whether test cost is included in the unit price or charged separately.
Coating, Grip and Contamination Control
Polyurethane is the normal coating for semiconductor handling gloves because it is thin, flexible and relatively low-lint when processed correctly. PU palm coating gives dry grip on trays, reels, plastic carriers and metal tool panels without the sponge thickness of nitrile foam. Fingertip PU gives the best ventilation and touch, but it wears faster at the index finger and thumb. Three-quarter PU is useful for maintenance work around equipment frames, but it traps more heat and may be over-specified for inspection benches. Nitrile foam is better for oily metal parts, stamped frames and general MRO work, but it is thicker and can leave visible contact marks on glossy black trays or housings. Smooth nitrile is tougher but less tactile. Latex is rarely specified for semiconductor or electronics handling because of allergy concerns and possible contamination sensitivity. PVC dot palms are usually rejected for this work because dots can detach or mark surfaces. If the operator handles clean dry devices, PU is still the first coating we would quote. Contamination control is a process chain, not a marketing word. We use continuous-filament yarn where possible, check yarn tension during knitting, trim loose threads after overlocking, and inspect cuffs so cut yarn ends are not exposed. Coated gloves should be cured correctly; under-cured PU can feel tacky and over-cured PU can crack. Buyers can request pair bagging, 10-pair inner PE bags, or bulk packing. Common export packing is 240 or 300 pairs per carton, often around 55 x 28 x 35 cm for 15G PU palm styles, but carton count changes with size ratio, cuff length and bagging method. If your programme needs particle count, non-volatile residue, silicone, chloride, sodium, potassium or other ionic contamination data, put the exact test method and limit in the RFQ. These are laboratory checks, not AQL visual defects. We do not claim cleanroom laundry or ultra-clean packaging from our standard Yiwu line; we can only support it through approved outside testing or a nominated clean-pack supplier if the buyer builds that into the project.
What Customisation Is Sensible and What Is Not
Good customisation for semiconductor handling gloves is functional: 15G versus 18G liner, nylon versus polyester, carbon stripe spacing, PU colour, coating area, cuff colour by size, inner bag quantity, carton label fields and barcode format. Size colour coding is practical in production areas, for example S white cuff, M green, L brown and XL blue, because operators can pick the right size without opening bags. Labels can show item code, size, lot number, PO number, carton count and country of origin for warehouse traceability. Branding should be restrained. A small woven cuff label, heat-transfer size mark or carton artwork is usually safe. Large palm logos, raised print, silicone patches or heavy ink are not sensible for tray and device handling because they can change contact feel, create marking risk or add another contamination variable. If the glove is used near polished plastic, optical modules or ceramic packages, keep the palm clean and unprinted. MOQ depends on how much is custom. A standard 15G white nylon-carbon PU palm glove may start around 3,000 to 5,000 pairs per size mix if yarn and coating are in stock. A special 18G liner, black or grey yarn, five cuff colours and private carton artwork is more realistic at 10,000 to 20,000 pairs. New yarn purchase or non-standard PU colour can push MOQ higher because dyeing and coating tanks have minimum batch volumes. Sampling normally takes 7 to 14 days after the specification is frozen. Bulk production is commonly 4 to 6 weeks after sample approval and deposit, or 6 to 8 weeks if the buyer requires third-party ESD testing before shipment. Unit price is driven by gauge, yarn, carbon content, coating area, packing and testing. For budget planning only, a standard ESD PU palm glove usually sits below a cleanroom nitrile glove but above a basic nylon inspection glove. We quote actual price only against size ratio, packing and annual volume.
Factory Inspection, Packing and Shipment Realities
Inspection criteria should be agreed before knitting starts. For knitted PU semiconductor handling gloves, final inspection should check size length and palm width, pair matching, coating coverage, PU seep-through, skipped stitches, broken carbon stripes, exposed yarn ends, stains, oil marks, odour, wrong cuff colour, wrong label and carton count. A common sampling plan is ANSI/ASQ Z1.4, single normal sampling, general inspection level II, with AQL 2.5 for major defects and 4.0 for minor defects. Critical defects such as oily contamination, mixed ESD and non-ESD styles, wrong size marking or foreign sharp objects should be zero tolerance. Incoming buyers should not rely only on a supplier certificate. Pull samples from sealed cartons, check surface or point-to-point resistance under the plant method, and compare against the approved sample. Also check fit after one shift, because an 18G glove that is too tight can reduce operator compliance. If gloves will be laundered and reused, test resistance and shrinkage after the actual wash cycle. Many PU-coated ESD gloves are bought as consumables, not long-life laundry items, so reuse assumptions must be tested, not assumed. Packing affects both cleanliness and freight. Pair bagging gives better control but increases plastic, labour and carton volume. Ten-pair PE inner bags are a common middle ground for back-end plants. Bulk packing is cheaper but less controlled after the carton is opened. A 20 ft container can carry a large volume of these gloves because they are light, but cartons cube out before they weigh out. For trials and mixed-size replenishment, LCL under FOB Ningbo or FOB Shanghai is common; for larger programmes, buyers may choose FOB, CIF or FCA depending on their forwarder control. We support OEM and ODM production for back-end semiconductor handling, test, packing and equipment support. We do not pretend that a knitted PU glove is a certified front-end wafer fab glove, a sterile glove or a full ESD control system. The buyer should own the plant-specific ESD acceptance criteria, and the factory should own stable knitting, coating, packing, lot traceability and honest reporting when a specification is outside the process capability. That is how semiconductor handling gloves should be sourced: narrow specification, tested samples, clear AQL, and no unsupported carton claims.
Quote Comparison Welcome
If you already have a quote from another supplier, send it over with the spec sheet - we will quote against it line by line and tell you where we are cheaper, where we are not, and why. Most useful for buyers on order #2 or #3.
Disclaimer: nothing here is legal or customs advice. For HS-code classification and duty rates, please verify with your customs broker.
