A practical sourcing guide for B2B buyers specifying foundry and die-casting gloves, covering contact temperature, leather thickness, aramid linings, EN 407:2020 and EN 388:2016+A1:2018 ratings, cuff length, MOQ, sampling time, AQL checks, packing and factory limits.

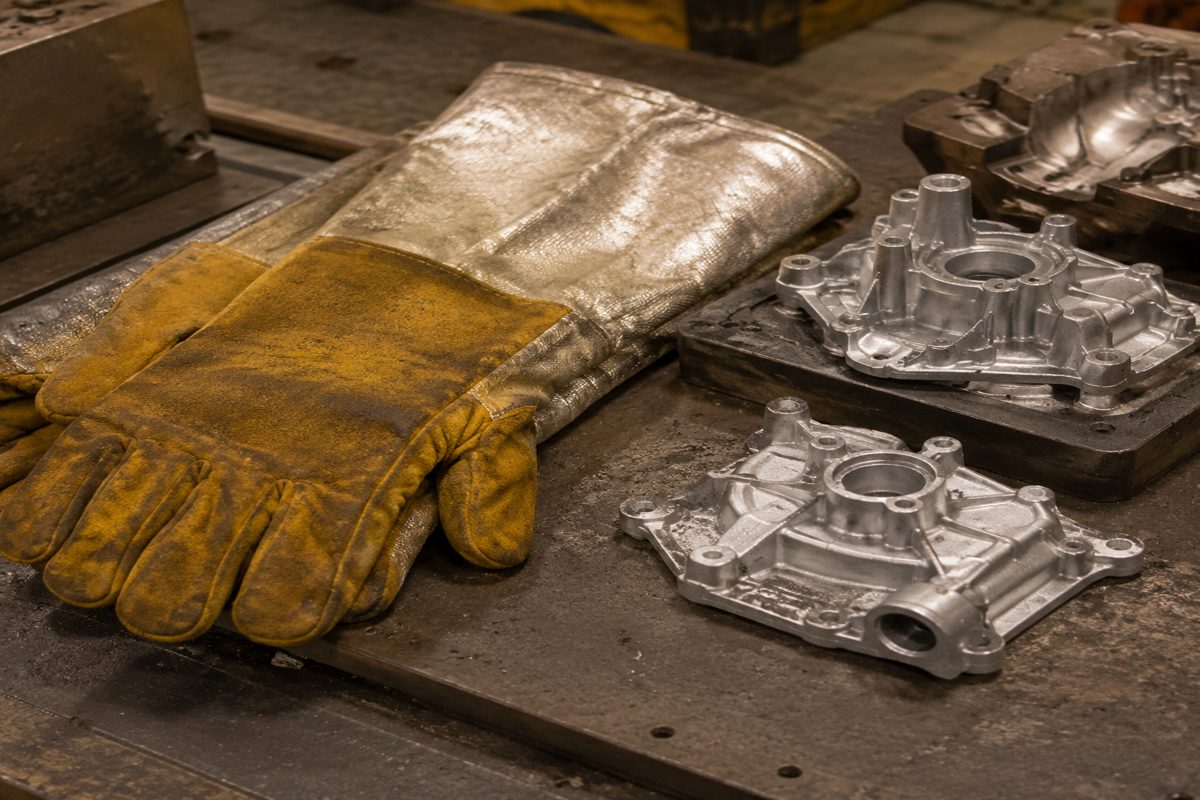

Start With the Casting Job, Not the Word Heatproof
A glove used to lift a 180°C aluminium casting from a die-casting machine is not the same product as a glove used near ladle splash, furnace charging or molten iron. The first job may be handled by 1.1 to 1.4 mm split cowhide, grain cowhide or leather with a cotton fleece or aramid lining. The second may need aluminised fabric, aramid felt, wool blend insulation, leather reinforcement and tested molten metal splash performance under EN 407:2020. If a buying brief only says heatproof foundry glove, a factory cannot quote responsibly. For foundry gloves sourcing, start with the work station. Tell the supplier the alloy, part temperature, contact time, grip condition and risk points. A useful line is 250°C contact for 10 seconds, zinc alloy casting, dry surface, sharp gate burrs, cuff 150 mm beyond wrist, EN 388 tear level required. That is production information. A photo of a brown gauntlet is not enough. GloveMark makes sewn leather handling gloves, leather and knitted liner combinations, aramid-thread stitched gloves, and private-label die-casting gloves for trimming, deburring, shot blasting, mould maintenance and hot part handling. We do not present a standard cowhide glove as suitable for primary molten-pour splash. If the job includes molten aluminium, brass or iron splash, the construction and laboratory test route must be confirmed before price is discussed.
Leather, Lining and Thread Decide the Real Performance
Most economical die-casting and foundry handling gloves use split cowhide because it gives useful abrasion resistance at a workable price. Common thickness is 1.1 to 1.4 mm for the palm and back. Below 1.0 mm the glove is easier to sew and cheaper, but it loses wear life around gates and rough castings. Above 1.5 mm the glove becomes stiff, and sewing consistency at the thumb crotch becomes harder. Grain cowhide gives better feel and a cleaner appearance, but it can harden after repeated hot contact and normally costs more than split leather. Lining is where buyers often under-specify. Cotton fleece is acceptable for moderate heat buffering and comfort, but it is not a high heat material. Para-aramid felt, aramid blended felt or a knitted aramid liner gives better heat and cut resistance. A 7 gauge aramid knitted liner is bulky but stronger around sharp flash. A 10 gauge cotton or aramid blend liner gives better dexterity but less insulation. For hot runners and rough casting edges, we usually discuss lining weight, not just lining type, because two aramid linings can feel very different in bulk and contact heat delay. Thread and seam position are small details with big failure consequences. Polyester thread can soften or melt when exposed to high local heat, so hot-work gloves should use aramid sewing thread, often 20s/3 or similar industrial sewing thread depending on seam load. Outer seams on fingers keep stitches away from the hottest contact surface and away from burr drag, but they reduce finger precision. Inner seams look neater and feel slimmer, but they fail faster if the operator drags hot castings across the finger sides. Reinforcement is normally added at the thumb web, palm heel and index side, not randomly across the whole glove.
Use EN 407 and EN 388 Carefully, Not as Decoration
For Europe, EN 407:2020 is the main reference for thermal risks. The six positions cover limited flame spread, contact heat, convective heat, radiant heat, small molten metal splashes and large molten metal splashes. A buyer should not write EN 407 certified as a blanket requirement. Specify the needed positions, for example contact heat level 2, no molten splash claim, or contact heat level 3 plus radiant heat level 2 if the job justifies it. Contact heat level 2 under EN 407 is tested at 250°C with at least 15 seconds before the inside temperature rises by 10°C. Level 3 is tested at 350°C, which usually means thicker insulation, lower dexterity and higher cost. If the operator only touches a 200°C part for 3 seconds, level 3 may be over-specified. If the operator holds a 300°C casting for 20 seconds, a cheap lined cowhide glove will not pass a serious trial even if the sales sheet says heat resistant. EN 388:2016+A1:2018 is still important because castings cut gloves as well as heat them. Check abrasion, blade cut, tear, puncture and the ISO 13997 TDM cut letter where sharp burrs are present. For the US market, buyers may also request ANSI/ISEA 105 cut or puncture levels, but heat discussions are often managed through EN 407 data and plant trials. GloveMark can arrange third-party testing through recognised labs when the buyer pays the lab cost. Allow 2 to 3 weeks for testing after approved samples are ready, and remember that a tested sample locks the construction. Changing leather thickness, lining or thread after testing means the report no longer represents the bulk goods.
Cuff Length, Pattern and Sizing Affect Worker Acceptance
Cuff length should be specified in millimetres, measured beyond the wrist or from the glove opening depending on the pattern drawing. Common die-casting cuffs are 100 mm, 150 mm, 200 mm and 300 mm. A 150 mm cuff is often enough for machine-side hot part handling. A 200 mm cuff gives better forearm cover during trimming and mould-area work. A 300 mm gauntlet protects more arm, but it can catch on machine guards, reduce speed and make workers remove the glove for button pressing or small tool changes. Pattern choice affects both cost and worker acceptance. Gunn cut is durable and common for leather work gloves. Clute pattern is cheaper and flatter but less shaped. Wing thumb is strong for gripping heavy castings. Keystone thumb improves movement but takes more skilled sewing time and raises cost. If operators handle parts below 80 mm, or need to pick up trimming tools, ask for a fit trial before bulk order. A glove that passes heat contact but is always removed on the line is a sourcing failure. Do not buy one size for every worker unless the application is rough, short-duration handling. For export programmes, M, L and XL are usually the minimum size range, with 2XL added for North American users. Lining takes internal space. A glove with 270 mm outside length may fit shorter after 3 to 5 mm of lining stack is sewn in. The pre-production sample should define palm width, middle finger length, total length, cuff opening and weight per pair, not just appearance.
Factory Reality: MOQ, Sampling and Price Drivers
For a custom leather and aramid-lined die-casting glove, realistic MOQ is usually 500 to 1,000 pairs per colour and pattern. Small 100-pair private-label runs are inefficient because leather sorting, cutting die setup, lining cutting, logo patch preparation and packing print all have fixed labour. For plain split cowhide gloves using stocked leather, samples may take 7 to 10 days. A new pattern with aramid lining, reinforcement, woven label or heat-transfer logo normally needs 2 to 3 weeks for samples. Bulk production after sample approval is typically 5 to 7 weeks, longer if testing, special leather colour or imported aramid fabric is required. Price is driven by leather grade, usable hide yield, cuff length, lining material, reinforcement area, thumb pattern, thread, label method and test requirement. A basic split leather heat handling glove may sit in a low single-digit US dollar FOB range. A 200 mm or 300 mm cuff glove with aramid lining, reinforced palm and aramid stitching can cost several times more. Genuine aluminised back gloves and gloves claiming molten metal splash performance are not the same supply chain as ordinary welding gauntlets. GloveMark can sew leather shells, source split and grain cowhide, prepare knitted liners, add aramid thread, apply woven labels, print cartons and coordinate lab submissions. We do not own a molten metal test laboratory, and we do not promise EN 407 molten splash levels without a tested construction. If the target is certified large molten iron splash, we would rather decline or work through a specialist partner than quote a normal leather gauntlet and hope the end user does not notice.
Inspection Points Before Shipment
Incoming leather inspection should use a thickness gauge, not hand feel. If the specification says 1.2 mm split cowhide, agree the tolerance before production, for example 1.1 to 1.3 mm on the main palm area, because leather varies across the hide. Inspectors should also check loose grain, hard scar areas, oil contamination, colour mixing and weak belly cuts. For lined gloves, check whether the liner is fully inserted to the fingertip and whether it pulls out when the hand is removed. In-line and final inspection should include seam strength at the thumb crotch and finger crotches, skipped stitches, open seams, uneven cuff length, left-right pairing, size marking, lining twist, reinforcement placement and carton assortment. Many B2B buyers use AQL 2.5 for major defects and AQL 4.0 for minor defects under ANSI/ASQ Z1.4 or ISO 2859-1 sampling. Heat-related checks should be handled carefully. A factory floor hot plate trial can compare samples, but it is not a substitute for EN 407 testing. Packing affects landed cost. A 200 mm cuff leather glove may pack about 60 pairs per export carton. A bulkier 300 mm aramid-lined glove may only pack 30 to 40 pairs per carton, depending on cuff stiffness and compression. Avoid vacuum packing because it can deform padded cuffs and make pairs hard to restore. Mark carton side panels with PO number, style code, size, quantity, gross weight and net weight. From Yiwu-area production, common export terms are FOB Ningbo or FOB Shanghai, with LCL sensible for trial orders and FCL considered once volume reaches several hundred cartons. Keep one sealed approval sample at the factory and one with the buyer, because leather shade, lining bulk and cuff stiffness cannot be controlled from a PDF alone.
Want a Second Opinion on Your Tech Pack?
We review around 8-12 tech packs a week from buyers comparing factories. Free, no obligation - we will flag construction issues, suggest fabric alternatives, and tell you if a quote you got elsewhere is realistic.
This guide is updated when industry conditions change - the last revision was based on Q1 2026 fabric pricing and CN-EU freight rates.
